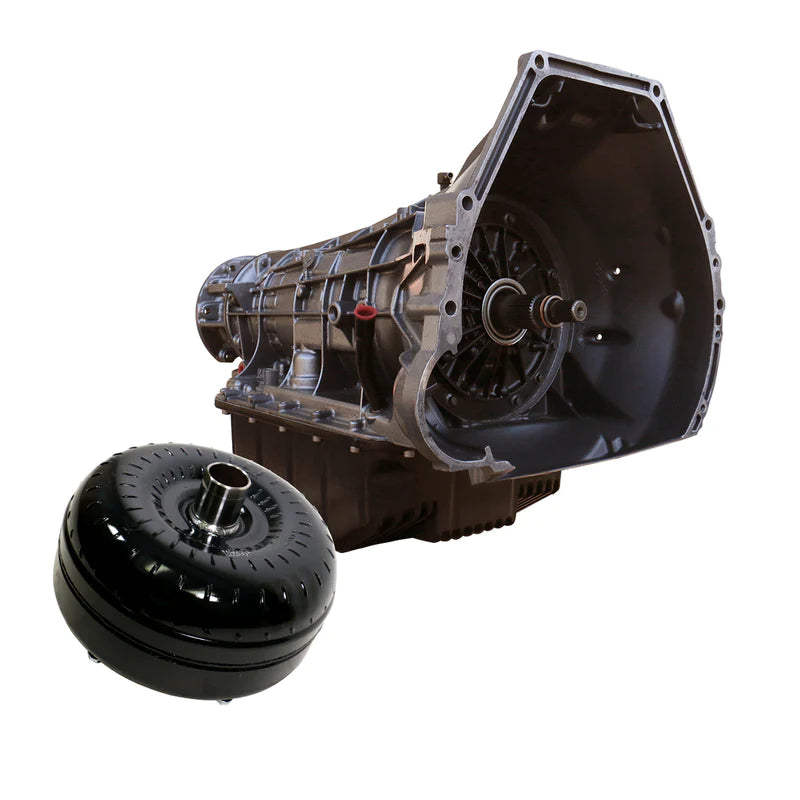

4R100 TRANSMISSION & CONVERTER PACKAGE FORD POWERSTROKE 7.3L 1999-2003

4R100 TRANSMISSION & CONVERTER PACKAGE FORD POWERSTROKE 7.3L 1999-2003

Part Number: 1064444SM

BD Diesel Performance

  • $6,650.00 CAD
    Unit price per


4R100 TRANSMISSION & CONVERTER PACKAGE FORD POWERSTROKE 7.3L 1999-2003

When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.

Features

Transmission

  • Increase the durability of your drivetrain
  • BD aluminum HD deep pan, increases oil capacity by 6qt
  • Re-calibrated accumulator body
  • Quicker, firmer shifts
  • Full shift kit with line mod valve to increase pressures
  • Increased pressure to converter
  • Added lube circuits to OD planet
  • Added lube and support to output and intermediate shafts
  • Drilled and tapped direct and intermediate feeds to prevent leaks at case
  • Upgraded OD snap ring
  • Machined center support
  • Reworked front pump
  • Fully rollerized geartrain
  • Clutch Count: COAST CLUTCH 2
  • Clutch Count: FORWARD 5 (25% increase over stock)
  • Clutch Count: DIRECT 5
  • Clutch Count: LOW REVERSE 7 (17% increase over stock)
  • Clutch Count: INTERMEDIATE 4 (33% increase over stock)
  • Clutch Count: OVERDRIVE 4 (33% increase over stock)
  • Each transmission is dyno tested
  • 1990-2003 include auxiliary frame mounted full flow filter kit

Proforce Torque Converter

  • Torque multiplying cast aluminum stators
  • Lower rpm response than the stock converter
  • More efficient operation
  • Less heat and better fuel economy
  • Stamp-forged steel front cover
  • Furnace-brazed fins

Warranty

  • 36-Months Parts
  • 150,000 Miles
  • No Race abuse covered.

Note

  • Does not have PTO provision
  • Excursion requires use of factory style transmission pan. BD Deep Pan will interfere with factory crossmember
  • Sending your core in after receiving your order will result in an upfront core charge amount of $2400 to be refunded upon the return and inspection of the core
  • Damaged cores that do not comply with manufactures core return guidelines will not be refunded
  • Return Core Shipping Costs are at the purchasers expense
