4R100 TRANSMISSION WITH FILTER KIT FORD POWERSTROKE 7.3L 1999-2003

4R100 TRANSMISSION WITH FILTER KIT FORD POWERSTROKE 7.3L 1999-2003

1064444F

BD Diesel Performance

$5,145.00 CAD
$5,145.00 CAD
Sale Sold out

This product may ship directly from the manufacturer

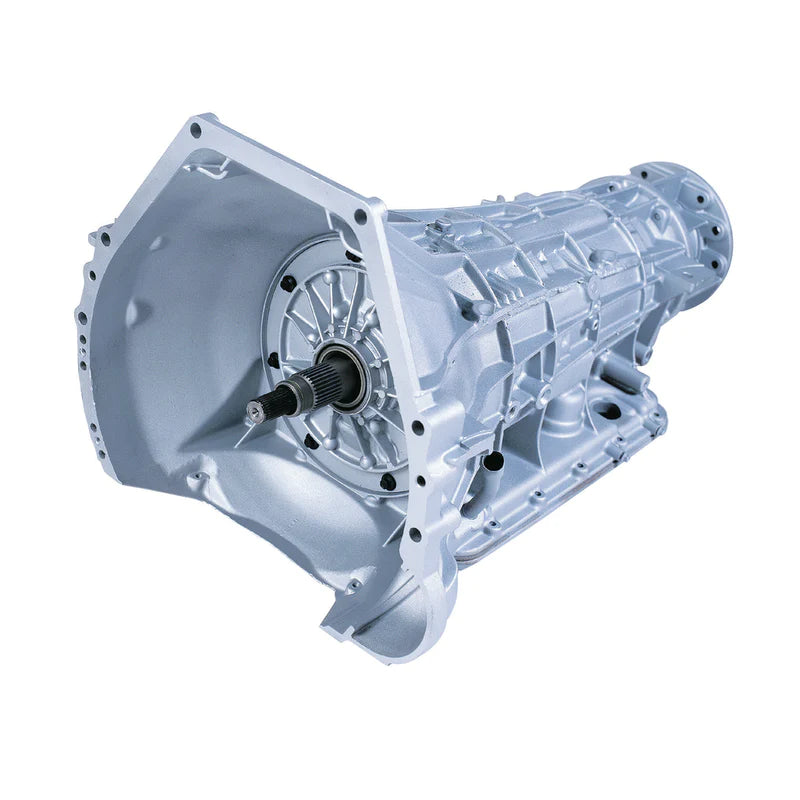

4R100 TRANSMISSION WITH FILTER KIT FORD POWERSTROKE 7.3L 1999-2003

The stock transmission is designed to handle the output of the stock engine, but not much more. Increase the durability of your drivetrain with a BD transmission. All transmissions come with BD's heavy duty transmission pan and most packages come bundled with our auxiliary transmission filter kit for added protection!

Features

  • Increase the durability of your drivetrain
  • BD aluminum HD deep pan, increases oil capacity by 6qt
  • Re-calibrated accumulator body
  • Quicker, firmer shifts
  • Full shift kit with line mod valve to increase pressures
  • Increased pressure to converter
  • Added lube circuits to OD planet
  • Added lube and support to output and intermediate shafts
  • Drilled and tapped direct and intermediate feeds to prevent leaks at case
  • Upgraded OD snap ring
  • Machined center support
  • Reworked front pump
  • Fully rollerized geartrain
  • Clutch Count: COAST CLUTCH 2
  • Clutch Count: FORWARD 5 (25% increase over stock)
  • Clutch Count: DIRECT 5
  • Clutch Count: LOW REVERSE 7 (17% increase over stock)
  • Clutch Count: INTERMEDIATE 4 (33% increase over stock)
  • Clutch Count: OVERDRIVE 4 (33% increase over stock)
  • Each transmission is dyno tested

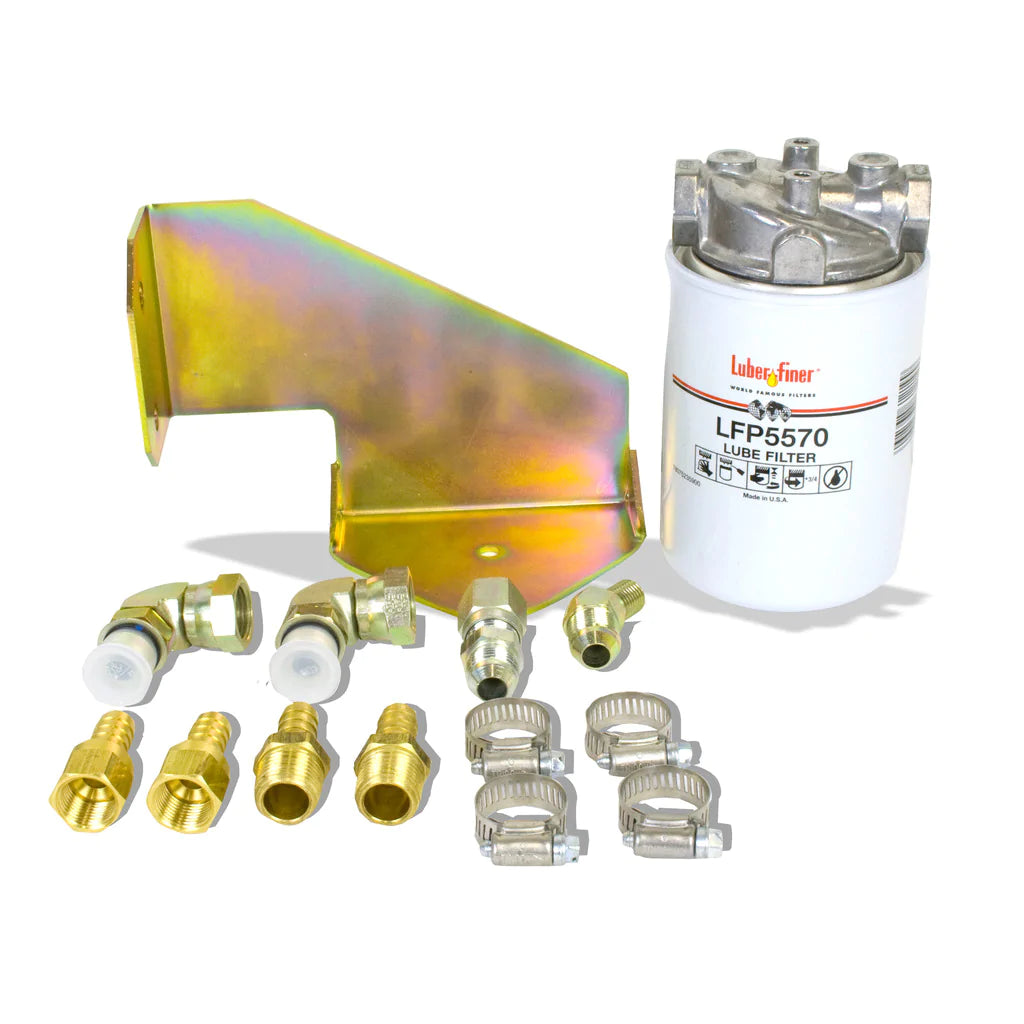

  • 1990-2003 include auxiliary frame mounted full flow filter kit

    Warranty

    • 36-Months Parts
    • 150,000 Miles
    • No Race abuse covered.

    Note

    • BD torque converter must be installed at the time of installation of the transmission - use of a 3rd party or OE converter will invalidate the transmission warranty
    • Does not have PTO provision
    • Excursion requires use of factory style transmission pan. BD Deep Pan will interfere with factory crossmember
    • Sending your core in after receiving your order will result in an upfront core charge amount of $2000 to be refunded upon the return and inspection of the core
    • Damaged cores that do not comply with manufactures core return guidelines will not be refunded
    • Return Core Shipping Costs are at the purchasers expense
        View full details
