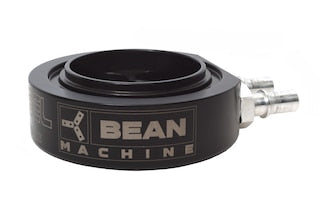

Bean Machine

New and improved design! The Beans Diesel Bean Machine multi function sump (supply/return into one). What we have done at Beans Diesel Bean Machine is step up the tank sump a notch. Made from 6061 Billet aluminum, this guy is built like a tank and is super simple to install just like the previous Beans Diesel Bean Machine sump. While still using a no tank-drop design, we have made this sump so it will install with a single bolt and a single 3" hole in your tank. This means less places to leak and much quicker install. All of our tank sumps come with a 3" hole saw, (so no extra trips to the hardware store), and all stainless hardware.  The single O-ring design creates the perfect seal insuring you have zero leaks. We designed our -8 fitting to use a Viton O-ring to ensure leak free connections. Our fittings can be used with a quick disconnect fitting or a push-lock fitting.  The Beans Diesel Bean Machine sump displays a whole new way of thinking.

Use Cases:

-Supply/Return

-Single outlet setup

-For your higher horse power trucks, dual outlet to get the extra fuel needed

Features:

-Uses all available fuel from the tank. No issues with sucking air when below ¼ tank. Perfect for use with today's high flow lift pump systems. (Airdog, FASS, etc)

-Stand pipe cut into the inside of the sump to reduce the amount of sediments that get to your filter system.

-Drain Plug for future tank servicing or sediment draining.

-Single bolt design that allows for 5 minute install. A single bolt offers less chances for leaks than tanks sumps using multiple bolts drilled into the tank.

-Stainless Steel hardware and QDC/push-lock fitting provided.

-Comes with 3” hole saw to make the only hole needed in your tank for install.

-Inner ring designed to go through the 3” hole so tank does not need to be dropped.

-O-ring design for a perfect seal.

-Super strong 1 piece machined billet design.

-Can be installed on any fuel tank with an available 4” diameter flat area

-DESIGNED AND MANUFACTURED AT OUR FACILITY, IN THE USA!!!

Kit Includes:

-Sump Body

-Sump Pacman

-3" Hole Saw

-Stainless Steel Bolt

-Sealing Washer

-O-Ring

-(2) -8 O-Ring Boss (ORB) to 1/2" QDC/Push-lock Fittings (With O-Ring)

-(1) -8 O-Ring Boss (ORB) Plug For Sumps (With O-Ring)

-Stainless Steel Plug Fitting
