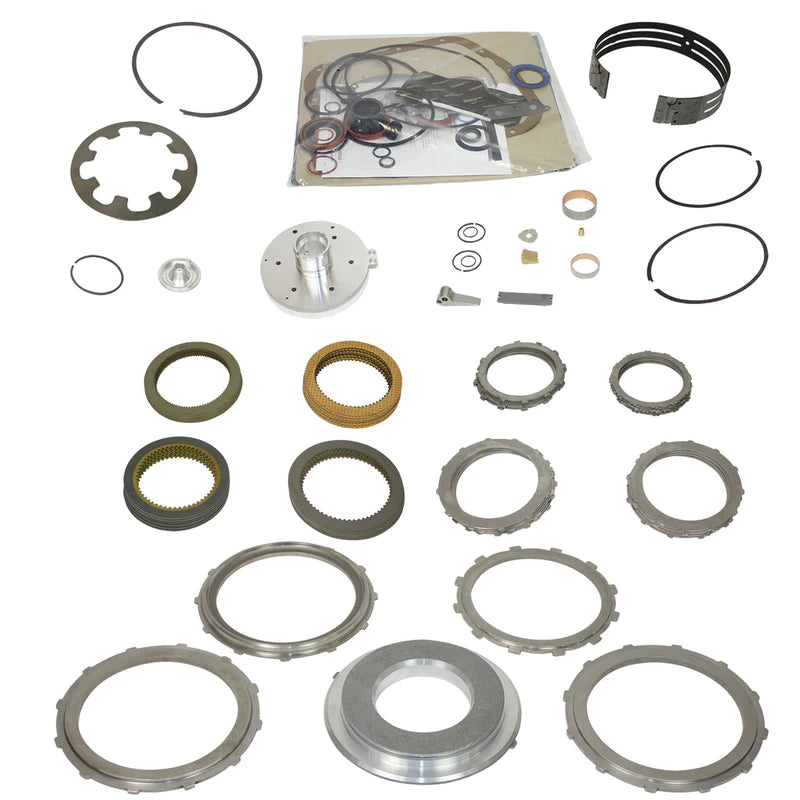

BUILD-IT TRANS KIT STAGE 4 MASTER REBUILD DODGE CUMMINS 5.9L 48RE 2003-2007

BUILD-IT TRANS KIT STAGE 4 MASTER REBUILD DODGE CUMMINS 5.9L 48RE 2003-2007

Are you a looking to rebuild your own transmission and needing some specialty parts to match your application? BD offers a range of rebuild parts kits featuring the same parts we use in our own performance transmissions for the seasoned builder to complete the job. All kits include the basic rebuild parts and gaskets and have the added touches that range from stock HP up to our Stage 4 Master Kit - which is pretty well everything we put in our own transmission rebuilds.

Features

• Same parts used in our own performance transmissions
• All kits include the basic rebuild parts and gaskets
• Band - High Temp/Energy - Raybestos
• Band Anchor - Billet
• Accumulator Piston - Billet Dual Ring
• Bushing - Front Clutch Drum 0.85
• Bushing - Pump - Bronze W/Dimples
• Clutch Disc
• Friction - Front (Dir/Hi/Rev) Allomatic
• Friction - O/D Allomatic
• Friction - O/D Direct Borg Warner
• Friction - Rear (Fwd) Borg Warner
• Shifter Bracket & Lever Kit - 4.2 Ratio
• Gasket Kit - Overhaul
• Pressure Plate - Dir/Fwd (Frt) .145"
• Pressure Plate - Dir/Fwd (Frt) .185"
• BD Pressure Plate Forward (Rr) Beveled Machinded
• BD Pressure Plate O/D Brake F&R Machined
• BD Piston - Dir. Clutch (Frt) Machined
• Piston Retainer Kit
• Servo Cover Ring
• Servo Piston Cover
• Snap Ring - Direct Clutch .062
• Snap Ring - Direct Clutch .074
• Snap Ring - Direct Clutch .088
• Rear Clutch Piston Spring
• Steel - Fwd (Dir/Hi/Rev)
• Steel - O/D Brake
• Steel - O/D Dir .525"
• Steel - Frt (Dir/Hi/Rev) Oversize
• Strut - Front Band
• Washer - Int. Shaft Thrust .052

Warranty

• 12-Months Parts
• 12,000 Miles

Note

• Recommend Option - BD Heavy Duty Transmission Pan
• Recommended Option for 2000-2007 Dodge - 1060602 Pressure Transducer or 1060605 Electronics Upgrade Kit
• Suggested option - BD Valve Body
