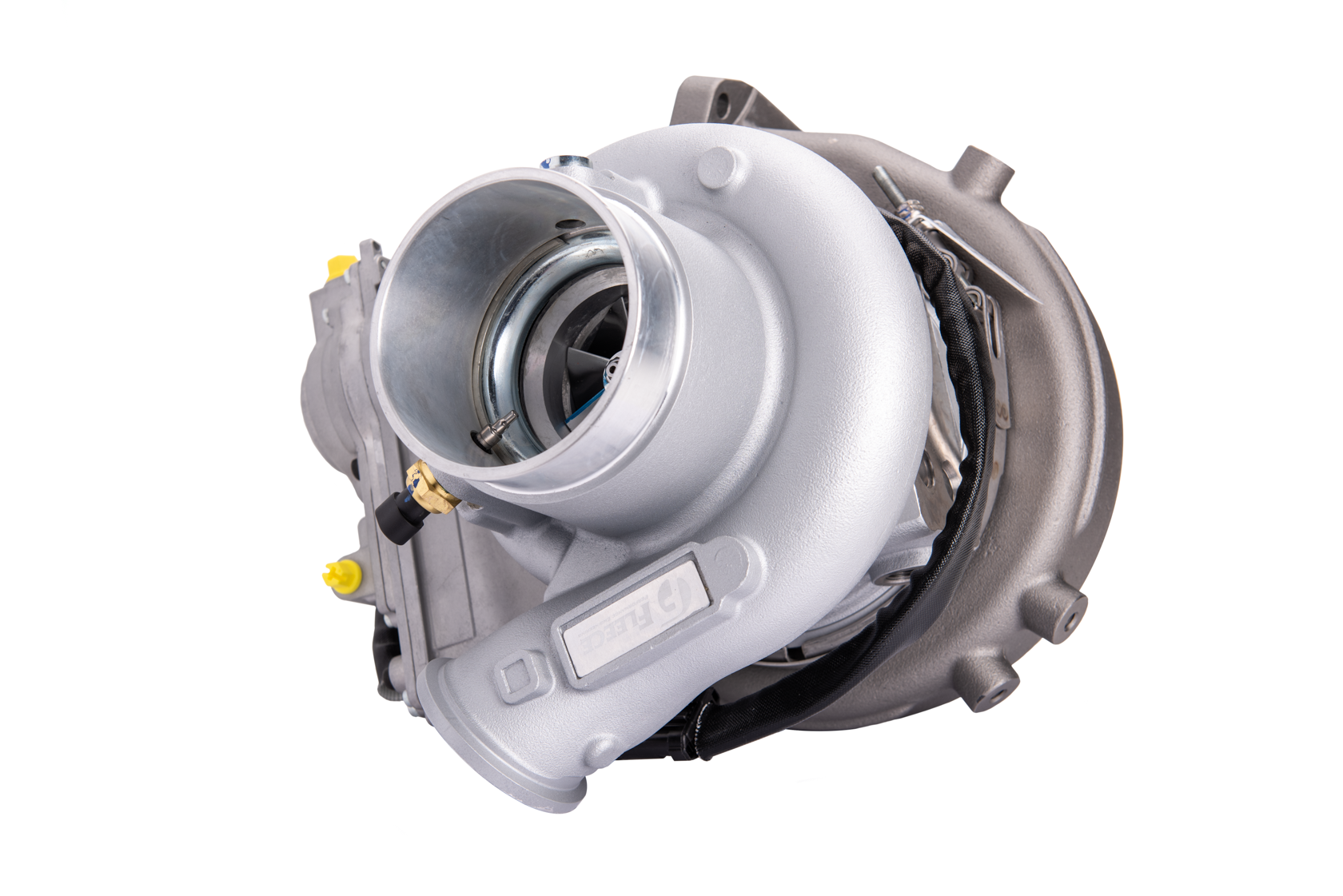

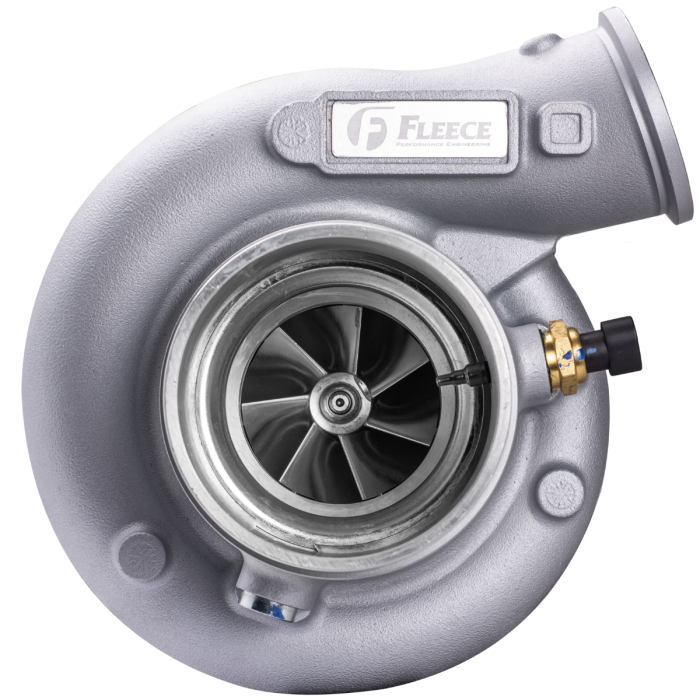

Fleece Performance HE400VG / HE451VE Turbocharger for Cummins ISX - 64mm

Fleece Performance HE400VG / HE451VE Turbocharger for Cummins ISX - 64mm

Part Number: FPE-HE4-64

Fleece Performance Engineering

Regular price $6,298.60 CAD
Regular price Sale price $6,298.60 CAD
Sale Sold out

From the turbo experts at Fleece Performance comes our all new HE400VG / HE451VE replacement turbocharger - providing you with a new, reliable replacement turbocharger to get you back on the road. Fleece Performance Engineering turbochargers set the industry standard for quality and reliability - our turbocharger is a direct replacement for Cummins ISX CM2250 and CM2350 models.



FEATURES

  • No core charge
  • New Holset actuator (HOL 4034289)
  • New air intake temperature sensor
  • New turbine speed sensor
  • New turbine flange gasket
  • New mounting studs and nuts



SPECIFICATIONS

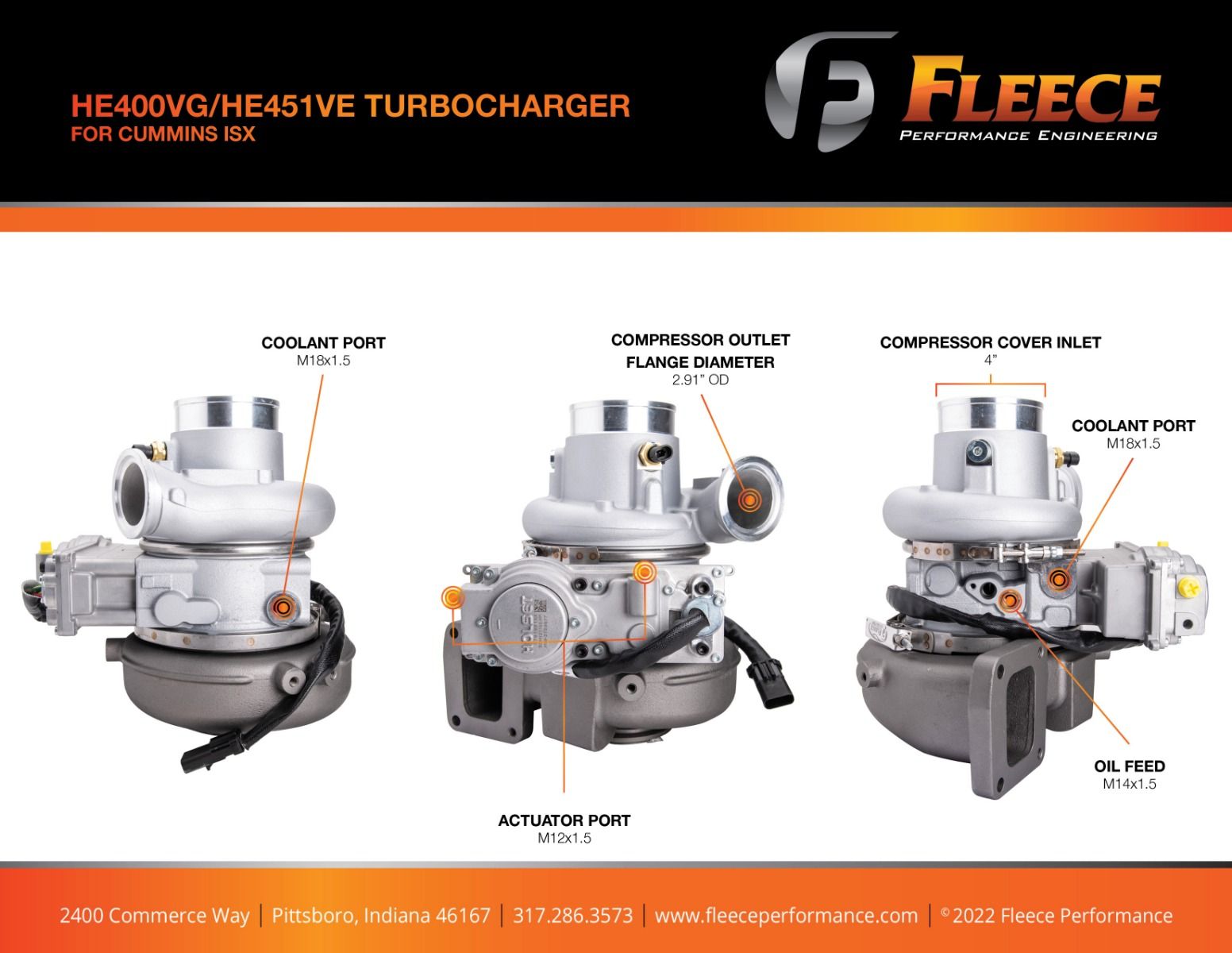

  • Coolant ports: M18x1.5
  • Oil feed port: M14x1.5
  • Compressor intake OD: 4.0”
  • Compressor outlet OD: 2.9"



Compressor wheel:

  • Blade count: 7x7
  • Inducer: 64mm
  • Exducer: 92mm



Turbine wheel:

  • Blade count: 11
  • Inducer: 72mm
  • Exducer: 67mm



Shipping weight: 65 lbs



FITMENT

Fits Cummins ISX15 CM2250 and CM2350

Replaces Holset part number: 2882111



PRIOR PART NUMBERS AND CROSS-REFERENCE

2882110NX, 2840007, 2841220, 2841221, 2841222, 2881807, 2882004, 2882110, 2882111, 3768194, 3773561, 3773562, 3773569, 3792586, 288211100, 288211100, 2882004NX, 2882004NX, 2882110NX, 288211100HX, 2882111NX, 2882111NX, 2882111RX, 3792586H, 3792586HX



*This list is not exhaustive of all possible cross-reference turbochargers.  Verify fitment with your ESN. For assistance, please call us at 317-286-3573.
