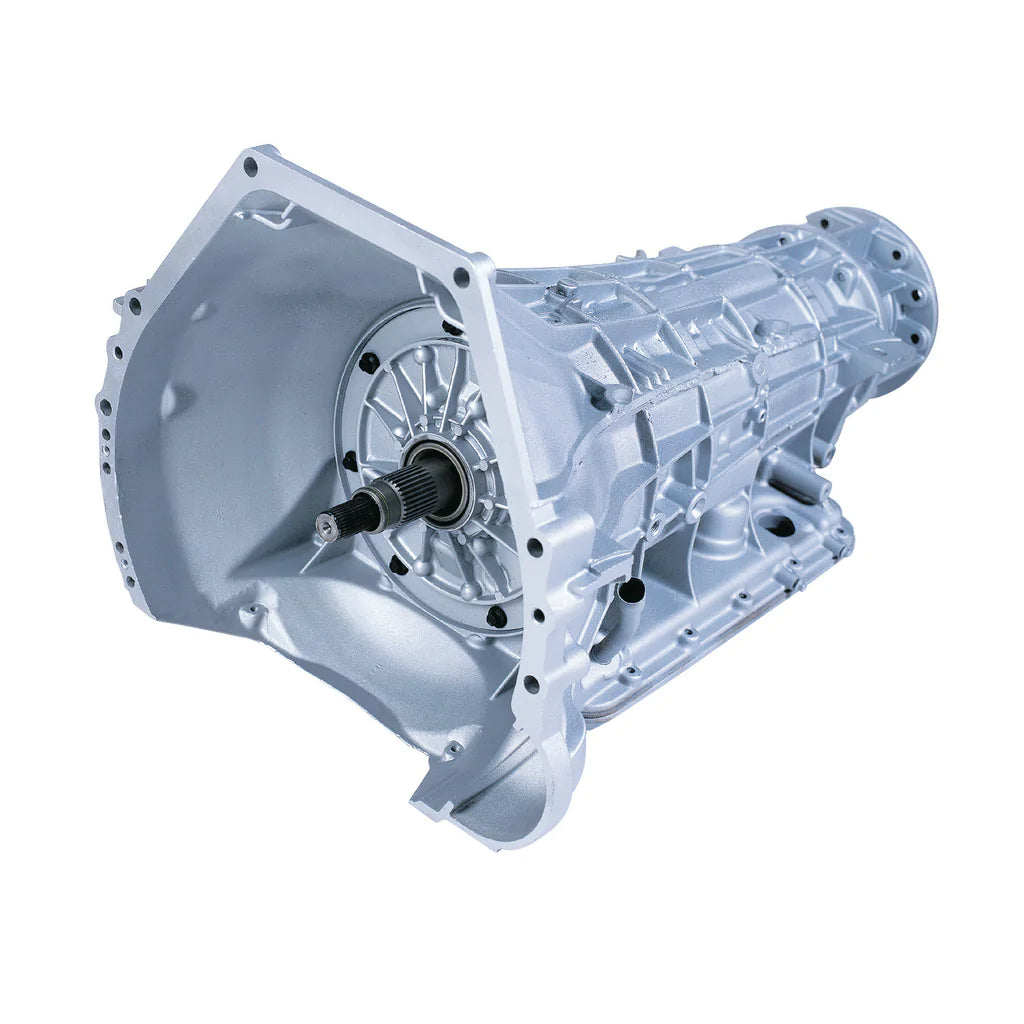

FORD E4OD TRANSMISSION & CONVERTER PACKAGE W/FILTER KIT 1995-1997

FORD E4OD TRANSMISSION & CONVERTER PACKAGE W/FILTER KIT 1995-1997

Part Number: 1064424F

BD Diesel Performance

  • $4,850.00 CAD
    Unit price per


FORD E4OD TRANSMISSION & CONVERTER PACKAGE W/FILTER KIT 1995-1997

The stock transmission is designed to handle the output of the stock engine, but not much more. Increase the durability of your drivetrain with a BD transmission. All transmissions come with BD's heavy duty transmission pan and most packages come bundled with our auxiliary transmission filter kit for added protection!

Features

  • Machined center support
  • Machined intermediate piston
  • Machined low/reverse pressure plate
  • Machined rear ring gear hub
  • Added lube circuits to OD planet
  • Added lube and support to output and intermediate shafts
  • Replaced all aluminum planetaries with steel
  • Drilled and tapped direct and intermediate feeds to prevent leaks at case
  • Re-programmed accumulator body
  • Full shift kit with line mod valve to increase pressures
  • Accumulator body enhanced oil flow
  • Increased cooler pressure
  • Increased pressure to converter
  • Creates positive clutch application
  • Created lube circuit for towing in overdrive
  • 1990-2003 include auxiliary frame mounted full flow filter kit
  • Clutch Count: COAST CLUTCH 2
  • Clutch Count: FORWARD 5
  • Clutch Count: DIRECT 5
  • Clutch Count: LOW REVERSE 7
  • Clutch Count: INTERMEDIATE 4
  • Clutch Count: OVERDRIVE 4
  • Pan adds 6qt extra oil capacity
  • Fully rollerized geartrain
  • Tighter clutch packs that provide a quicker shift
  • 30%-40% more clutch material with additional steels
  • Improved internal lubrication by adding high power boost valves
  • Reworked front pump
  • Improved bearing designs
  • Upgrade supports
  • Upgraded sprags
  • Sure-loc snap rings
  • Solenoids hard wiring providing high temperature resistance
  • Increase the durability of your drivetrain
  • Revised oil circuits
  • Handles up to 300% more power and torque than the stock transmission
  • Extra clutches and stronger internals
  • BD rigid aluminum heavy duty transmission pan
  • Pan reduces case flex
  • Pan reduces internal oil leakage
  • Pan heat-dissipating fins keep temperature down
  • Pan magnetic drain plug
  • Not warranted for Race or Sled Pull use
  • Each transmission is dyno tested

      Warranty

      • 36-Months
      • 150,000 Miles
      • No Race abuse covered.

      Note

      • Sending your core in after receiving your order will result in an upfront core charge amount of $2000 to be refunded upon the return and inspection of the core
      • Damaged cores that do not comply with manufactures core return guidelines will not be refunded
      • Return Core Shipping Costs are at the purchasers expense
