P7100 FUEL CONTROL PLATE DODGE 1994-1998 12-VALVE

Part Number: 1040195

BD Diesel Performance

  • $363.95 CAD
    Unit price per

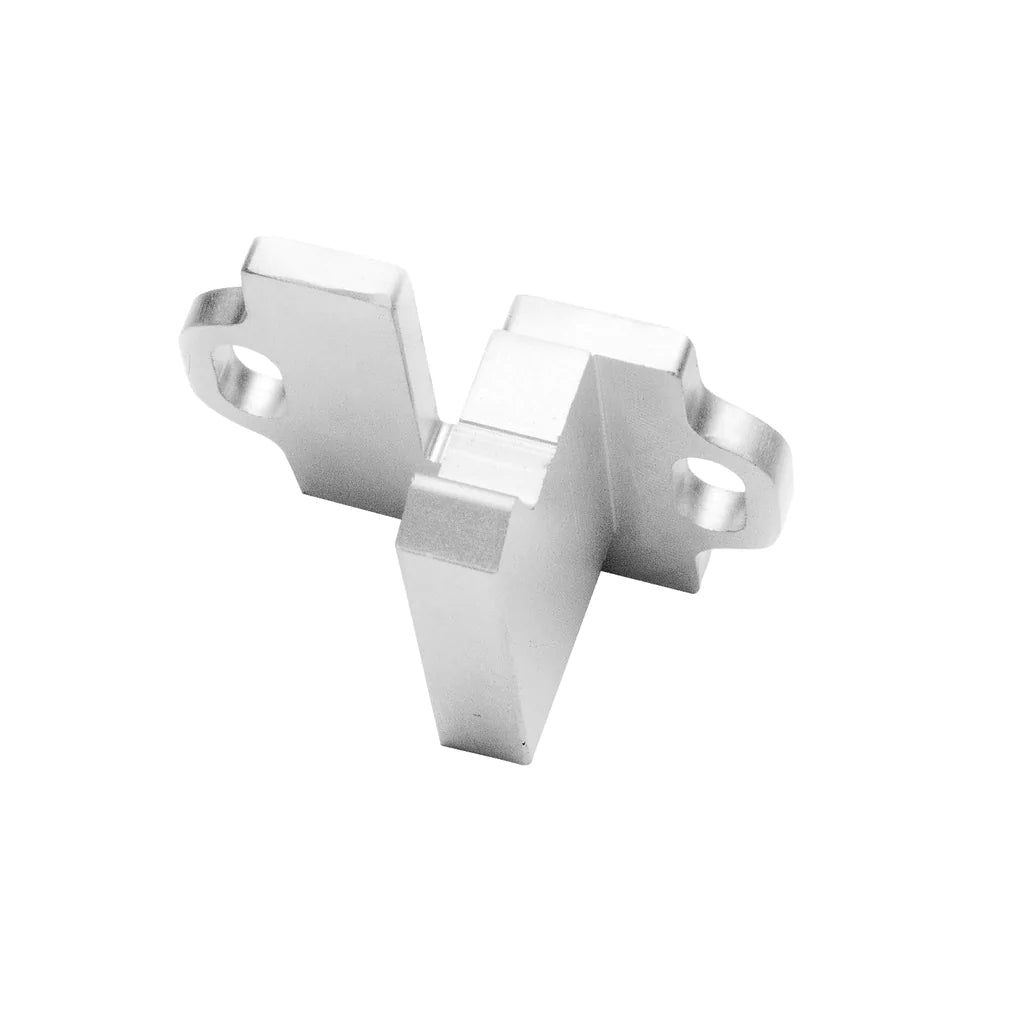

P7100 FUEL CONTROL PLATE DODGE 1994-1998 12-VALVE

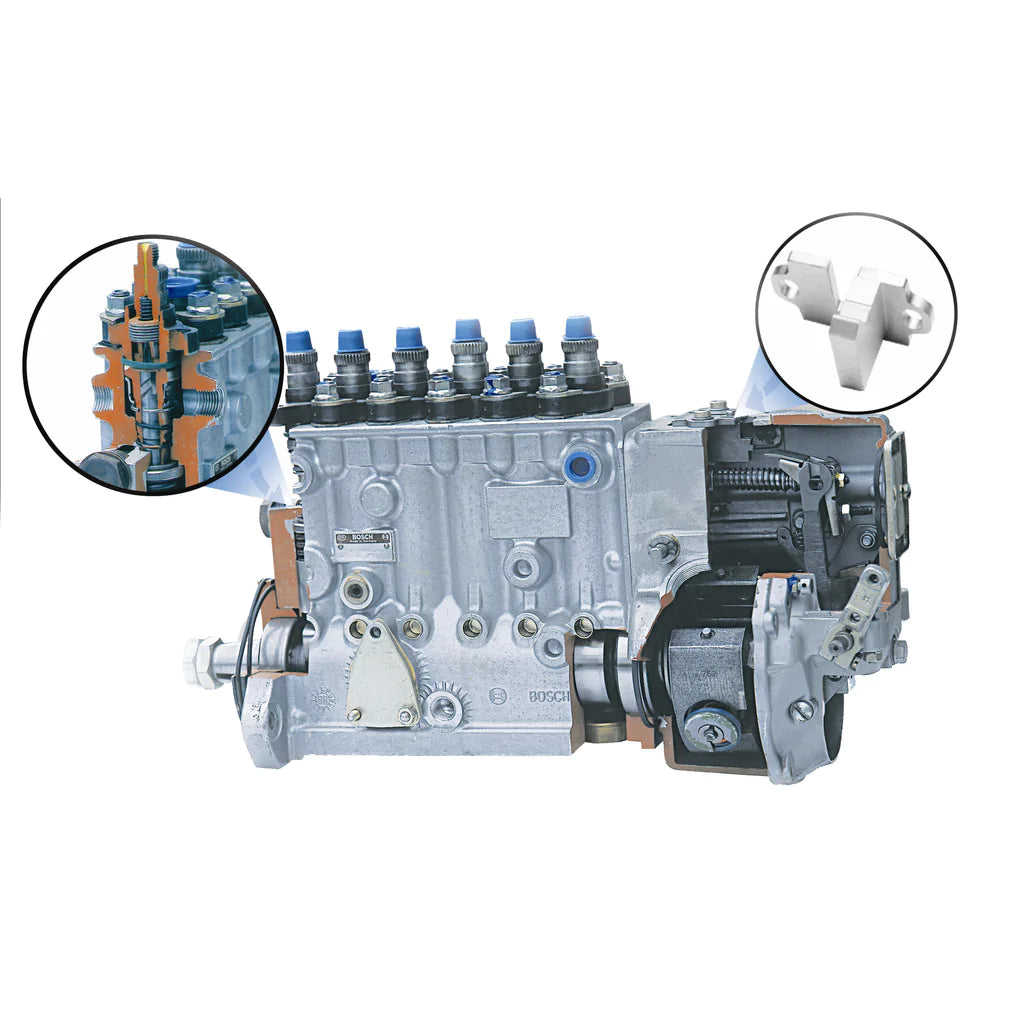

Commonly known as a "cam plate", BD's Fuel Stop Plate controls the rack travel, which affects the amount of fuel the Bosch P7100 fuel pump delivers. Six different ramp designs enable power gains from 30 to 150 hp and 70 to 300 lb.-ft. of torque. A calibrated boost tube orifice is included to improve turbo performance. Strong knowledge of Bosch P7100 pump required.

    Features

    • Commonly known as a "cam plate"
    • Controls the rack travel which affects the amount of fuel the P7100 fuel pump delivers
    • Six different ramp designs
    • Power gains from 30 to 150 hp and 70 to 300 lb.-ft. of torque
    • Calibrated boost tube orifice improves turbo performance
    • Strong knowledge of P7100 pump required

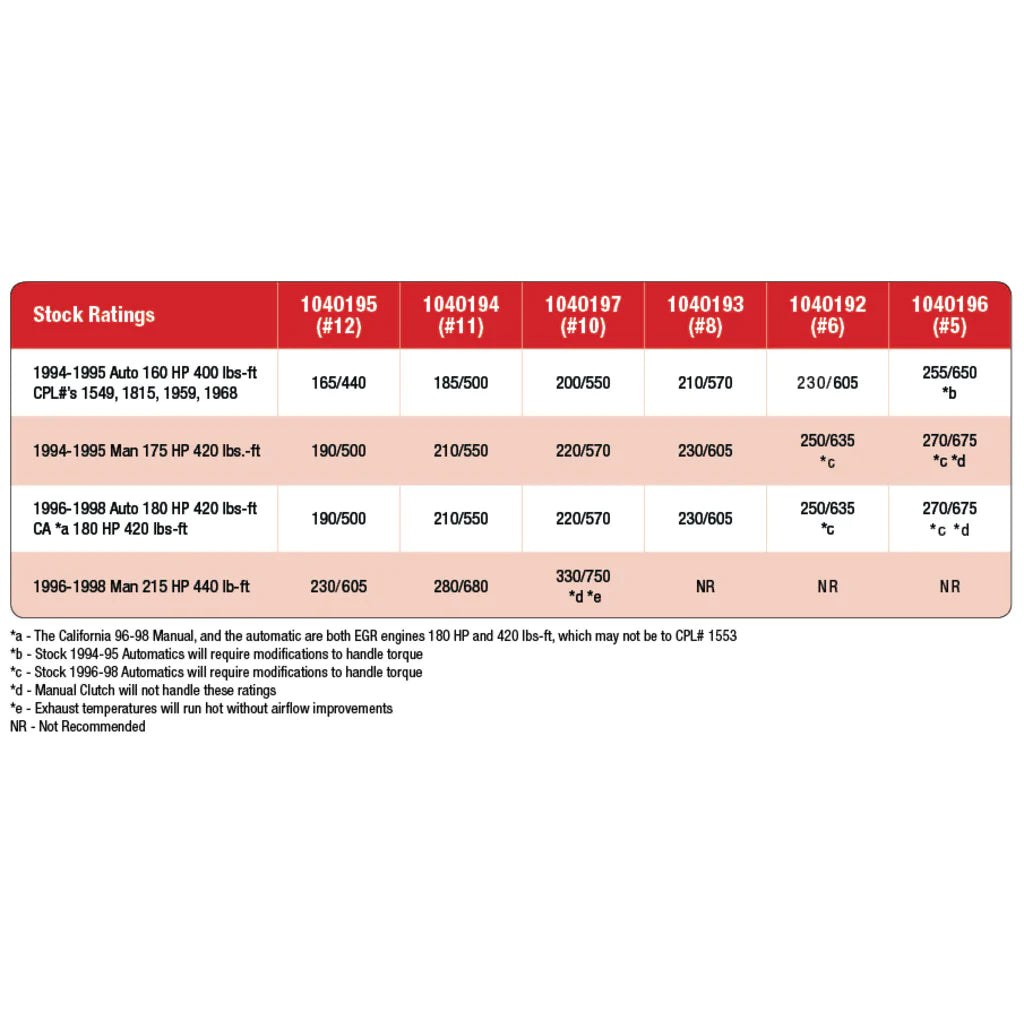

    • 1994-1995 Auto 160 HP 400 lbs-ft CPL#'s 1549, 1815, 1959, 1968 --> 165 HP / 440 lbs-ft
    • 1994-1995 Man 175 HP 420 lbs.-ft --> 190 HP / 500 lbs-ft
    • 1996-1998 Auto 180 HP 420 lbs-ft --> 190 HP / 500 lbs-ft
    • 1996-1998 Auto/Man CALIF 180 HP 420 lbs-ft --> 190 HP / 500 lbs-ft
    • 1996-1998 Man 215 HP 440 lb-ft --> 230 HP / 605 lbs-ft

      Warranty

      • 12-Months Parts
      • 12,000 Miles
