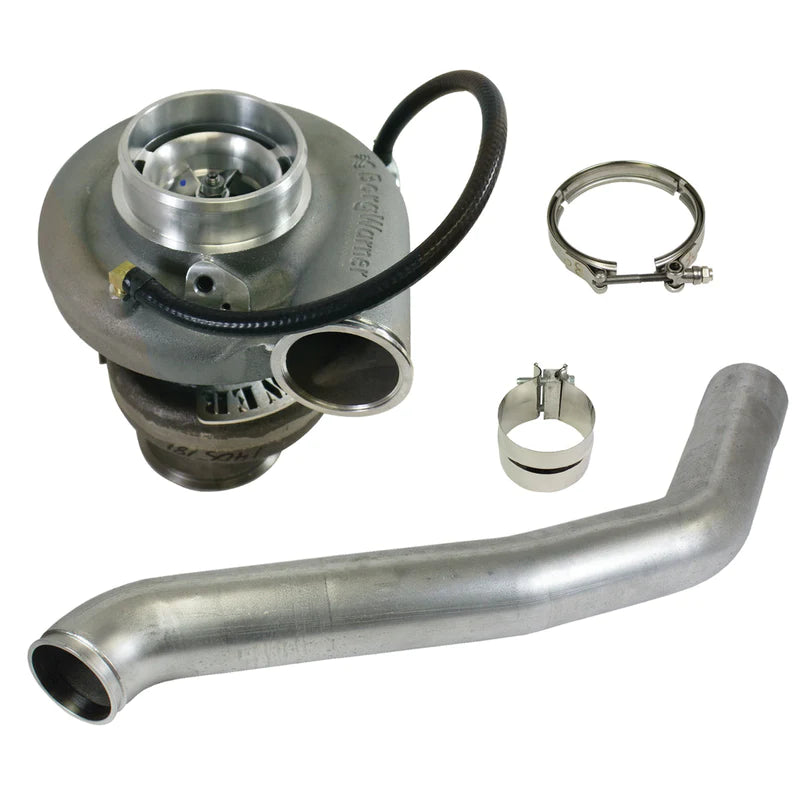

SUPER B SPECIAL SX-E S363 TURBO KIT DODGE 5.9L CUMMINS 1994-2002

SUPER B SPECIAL SX-E S363 TURBO KIT DODGE 5.9L CUMMINS 1994-2002

Part Number: 1045257

BD Diesel Performance

Regular price $3,149.00 CAD
Regular price Sale price $3,149.00 CAD
Sale Sold out

SUPER B SPECIAL SX-E S363 TURBO KIT DODGE 5.9L CUMMINS 1994-2002

BD's Dodge 5.9L Single Turbo kits have been the choice for a complete, easy bolt-on performance replacement for your OEM turbo, giving you more power, response and reliability. All kits come with everything you need to allow for an easy install. Now get these kits with Borg Warner SX-E turbo options and expect even more. The SX-E line was designed from the ground up for performance. Larger blade surface allows the SX-E models to spool quicker, flow more, and be more efficient with a smaller inducer size. A BD exclusive feature of the SX-E turbos is that they are waste-gated to mount on stock T3 manifolds. T3 style housing and manifolds create a higher velocity speed and better turbo response for these power ranges.

Features

  • BD Single Turbo kits cover a range of turbos that are an easy complete bolt-on performance replacement for your OEM turbo, providing enough air for more power, response and reliability
  • The SX-E turbo was designed for performance with a 360 thrust bearing and enhanced compressor wheel and housing
  • Larger compressor blade surface but with a smaller inducer results in quicker spooling, more flow than similar sized wheels
  • The high strength FMW Forged Milled Wheels are lighter and stronger and withstand higher wheel speeds
  • BD exclusive feature of a heavy sprung waste-gated T3 turbine housing that mounts onto stock exhaust manifolds
  • BD's HD Waste gate and bracket holds boost and prevents over speed damage
  • Turnbuckle Boost Control allows for ease of adjustment for altitude and extreme tuning
  • Kit comes with downpipe, V-band clamp, band clamp
  • Comp Wheel: 63mm 2.48in
  • Turbine Wheel: 80mm 3.15in
  • A/R Ratio: 0.80
  • Flow: 79 Lb/min
  • Approximate rated 550hp (depending on truck configuration)

Warranty

  • 12-Months
  • 12,000 Miles

Note

  • Turbo mount exhaust brake cannot be installed with this kit - use remote mount exhaust brake
