XTRUDE DOUBLE STACKED TRANSMISSION COOLER WITH FAN - COMPLETE KIT 1/2IN LINES
XTRUDE DOUBLE STACKED TRANSMISSION COOLER WITH FAN - COMPLETE KIT 1/2IN LINES
Part Number: 1030606-DS-12
BD Diesel Performance
XTRUDE DOUBLE STACKED TRANSMISSION COOLER WITH FAN - COMPLETE KIT 1/2IN LINES
HOT transmission oil has to be COOLED to keep you on the track. Double stacked cores deliver over 40,000 BTU/HR of cooling and over 350% temperature drop versus the factory system - 36% better temperature drop than BD's standard single core kit. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control. Xtruded Transmission Oil Cooler packages come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation - no wasting time fabricating brackets out of scrap metal. The pre-wired loomed harness with fuse and relay comes with OEM style sealed connectors to resist elements and give factory-like install look.
Features

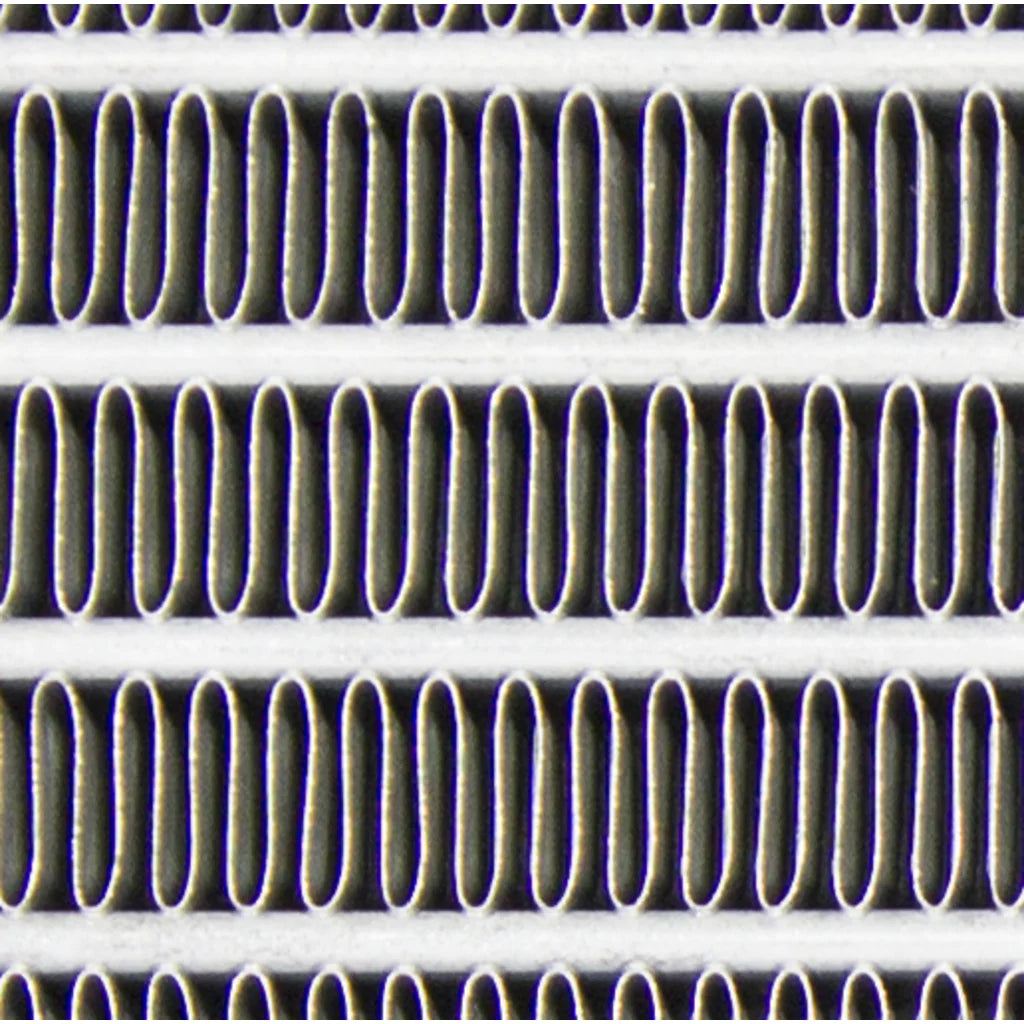

- Large surface area to transfer heat for external air flow cooling
- Turbulent oil flow design promotes a more complete cooling
- Large 5/8-inch ports prevents inlet/outlet restriction
- Furnace brazed rails have been tested to 300psi of pressure
- Thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan
- Kits complete with all fittings, clamps, hoses and hardware
- Build-It-Yourself galvanized bracket kit for quick and easy installation - no wasting time fabricating brackets out of scrap metal
- The pre-wired loomed harness with fuse and relay comes with plug-in connectors
- Dodge 47RH / 47RE / 48RE / 68RFE - 1/2-inch Cooler Lines
- Ford 5R110/6R140 - 1/2-inch Cooler Lines)
- Double stacked cores deliver over 40,000 BTU/HR of cooling
- Over 350% temperature drop versus the factory system
- 136% better temperature drop than XTRUDED single core kit
Warranty
- 12-Months Parts
- 24,000 Miles
Note
- Intended to be used in conjunction with factory transmission coolers and not as stand-alone units
